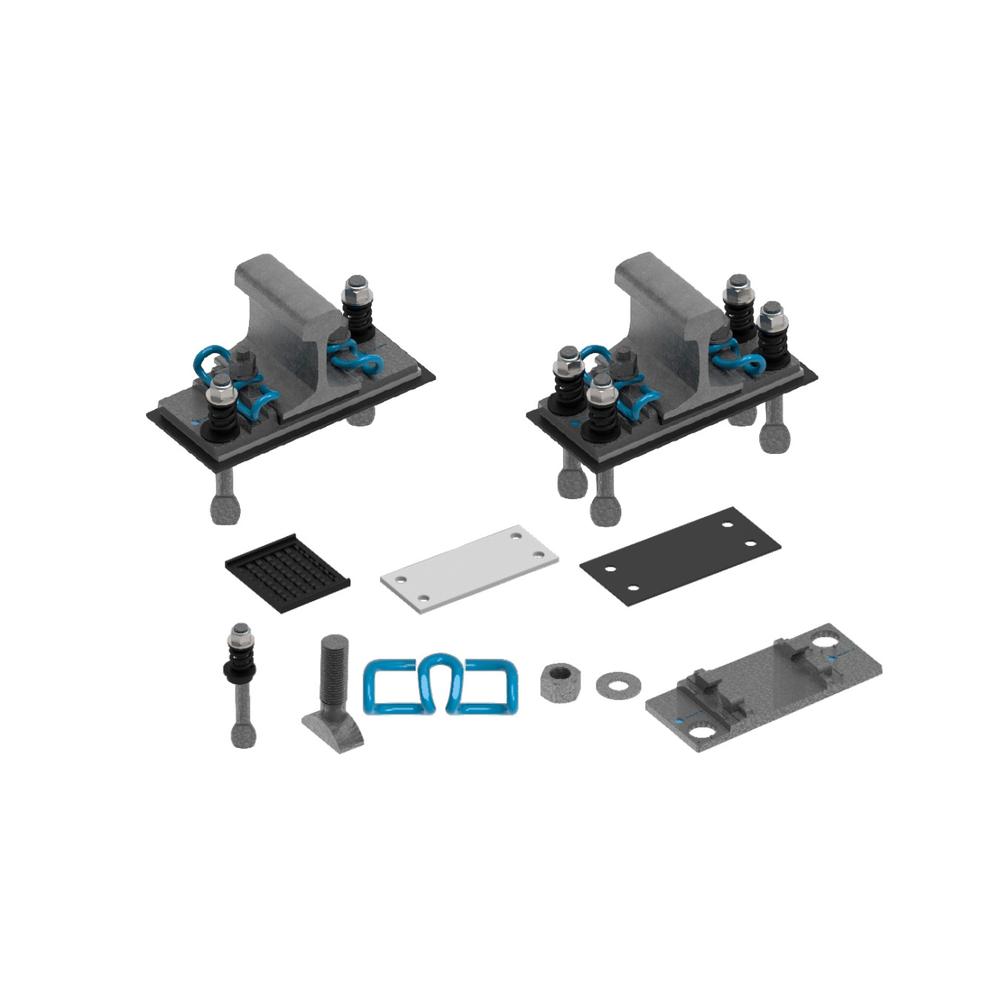

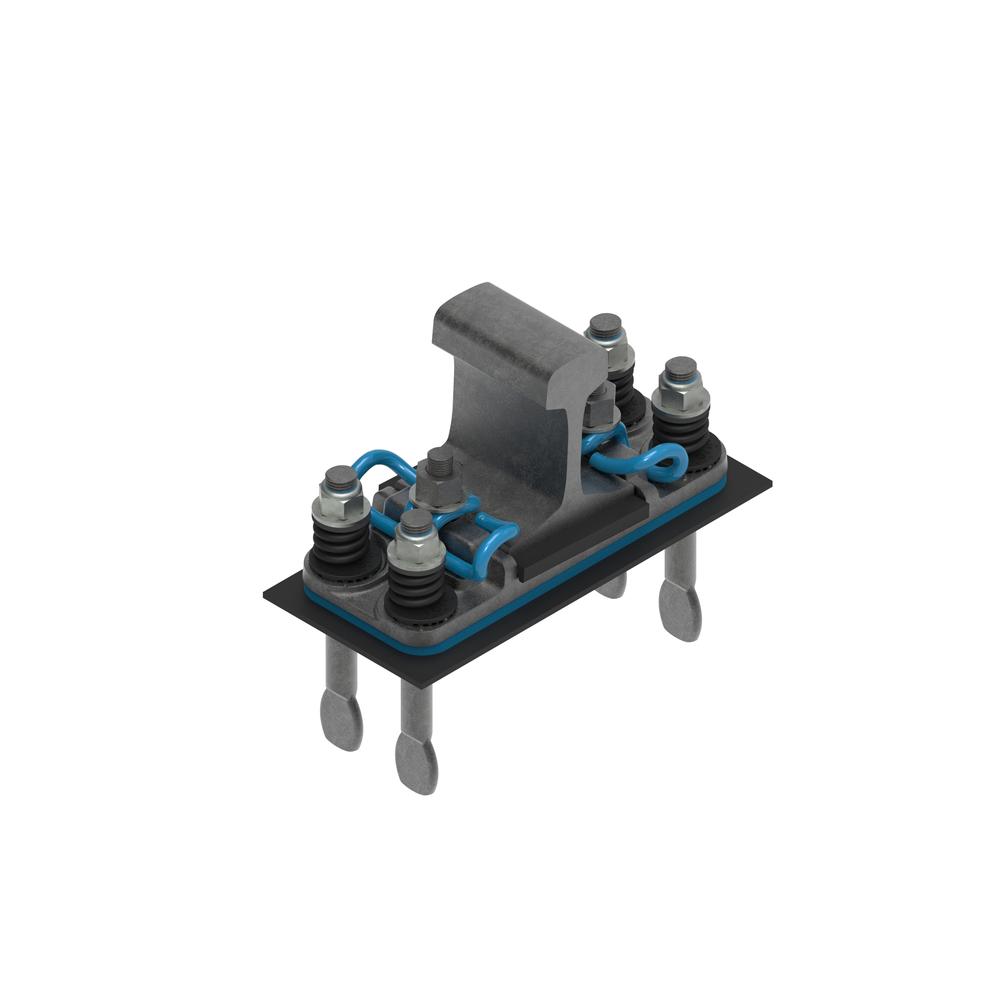

The rail fastening systems KE1/2 and KE1/4 are designed for category C and D according to EN 13481-5 standard, with a maximum permissible axle load of 260 kN.
The systems are dedicated for Conventional Railways and Urban Traffic Metros on slab track.
The systems ensure low static stiffness by using resilient pads have the possibility of track gauge adjustment within a range of ±10 mm in 1 mm increments.
- Regulation of vertical position through regulation pads
- Static stiffness of the system in standard version: up to 25 kN/mm (possibility to adjust static stiffness according to the customer needs)
The systems are dedicated for Conventional Railways and Urban Traffic Metros on slab track.
The systems ensure low static stiffness by using resilient pads have the possibility of track gauge adjustment within a range of ±10 mm in 1 mm increments.
- Regulation of vertical position through regulation pads
- Static stiffness of the system in standard version: up to 25 kN/mm (possibility to adjust static stiffness according to the customer needs)
Specifications
General specifications
|
Clamping Force |
min. 9 kN |
|
Diameter in mm |
13,5 |
|
Fatigue Amplitude |
2,5 mm |
|
Used For |
Conventional Rail and Urban Traffic Metros on slab track |
|
Axle Load |
max. 260 kN |
|
Speed |
≤ 250 km/h |
|
Track Longitudinal Resistance |
min. 9 kN |
|
Clamping Force |
18 kN ÷ 19 kN |
|
Gauge adjustment |
± 10 mm with 1 mm increments |
|
Resistance |
≥ 5 kΩ |
