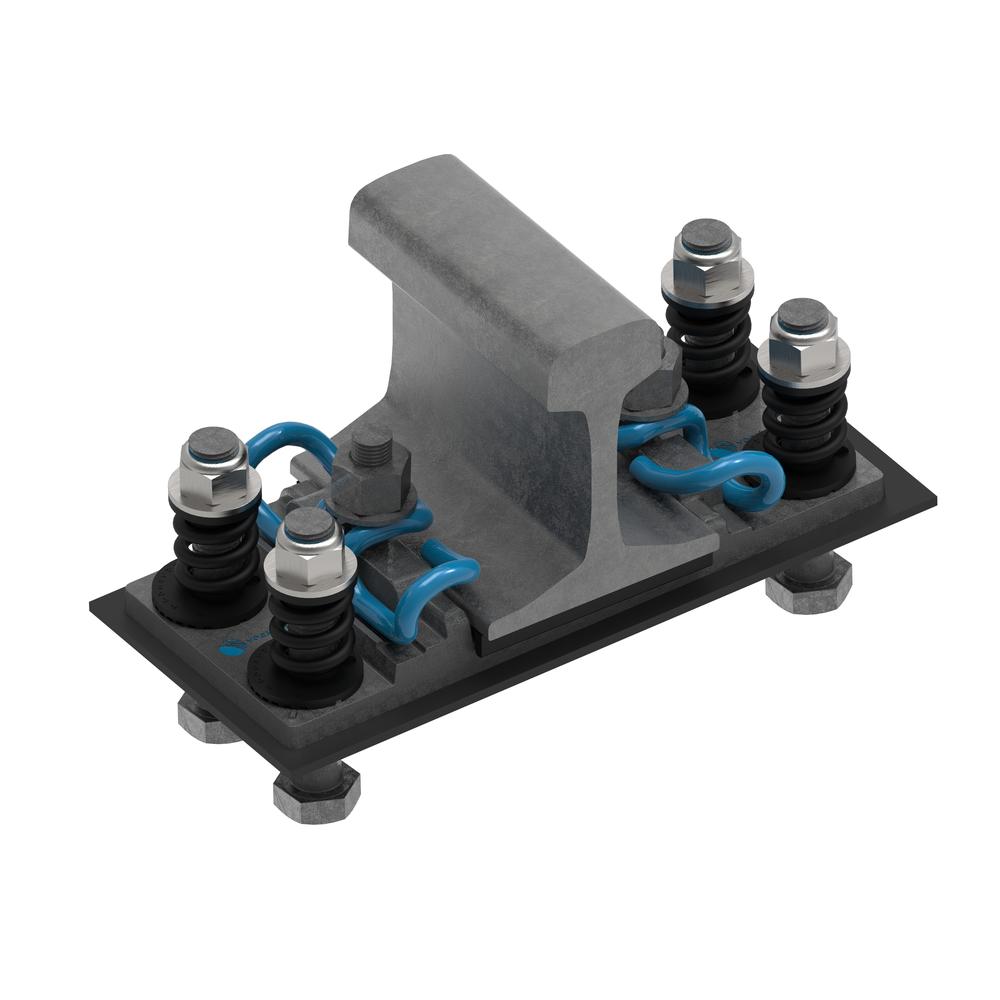

The rail fastening system KE1/4 MOST is designed for category C and D according to EN 13481-5 standard, with a maximum permissible axle load of 260 kN.
The system is dedicated for Conventional Railways and Urban Traffic Metros on steel beams.
The system ensures low static stiffness by using resilient pads have the possibility of track gauge adjustment within a range of ±10 mm in 1 mm increments.
- Regulation of vertical position through regulation pads
- Static stiffness of the system in standard version: up to 25 kN/mm (possibility to adjust static stiffness according to the customer needs)
The system is dedicated for Conventional Railways and Urban Traffic Metros on steel beams.
The system ensures low static stiffness by using resilient pads have the possibility of track gauge adjustment within a range of ±10 mm in 1 mm increments.
- Regulation of vertical position through regulation pads
- Static stiffness of the system in standard version: up to 25 kN/mm (possibility to adjust static stiffness according to the customer needs)
Specifications
General specifications
|
Used For |
Conventioneel spoorvervoer en stadsvervoer: metro’s op stalen balken |
|
Axle Load |
max. 260 kN |
|
Speed |
≤ 250 km/h |
|
Track Longitudinal Resistance |
min. 9 kN |
|
Gauge adjustment |
± 10 mm with 1 mm increments |
|
Clamping Force |
18 kN ÷ 19 kN |
|
Resistance |
≥ 5 kΩ |
