Power Supply for Challenging Bottlenecks in Rail Infrastructure
It is not uncommon for certain parts of the rail infrastructure to be built using special structural designs. Examples include movable bridges, tunnels, depots, and workshops. Because these locations deviate from the standard infrastructure layout, extending the power supply can be difficult. In practice, traditional overhead line systems often lack the required installation height.
For these types of challenges—found in both light rail and mixed trafficrail—we now offer high quality conductor rail solutions. In collaboration with Vijselaar Industrial Systems & Components, we have joined forces to provide a robust offering.
There are roughly four types of conductor rail systems available, depending on the specific requirements of the situation, including:
- Standard heavy duty version made of galvanized steel with a copper conductor head
- Light weight conductor rail with an aluminum carrier and copper conductor head
- Conduction using a full copper profile
- Customized solutions
The appropriate type is selected based on system conditions (such as potential chemical reactions between materials), required power capacity, and acceptable voltage drop. For higher power levels or longer distances, the system can easily be scaled by increasing the number of feed points or adjusting the copper cross section.
Practical Installation

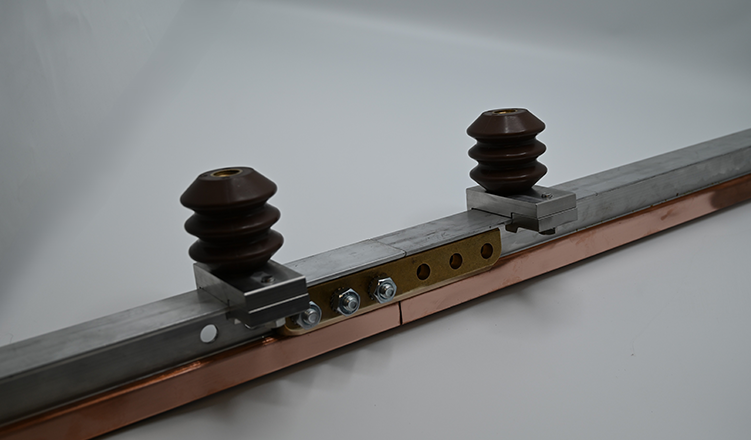

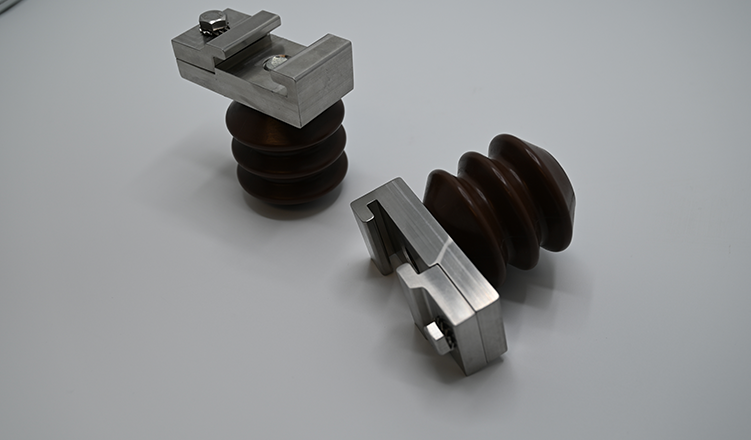

Our extensive portfolio of mounting components ensures a standard solution for any situation. The conductor rails are mounted with insulators equipped with rail clamps. Conductor rail connectors guarantee a solid link between rail profiles. For lengths exceeding 100 meters, expansion sections are required to accommodate thermal expansion and ensure dimensional stability.
Power and/or overhead line cables are mounted onto the rail using connection clamps. Naturally, the mechanical and electrical conduction properties of the various conductor rail types have been thoroughly tested and validated.
Custom Components for Specific Applications

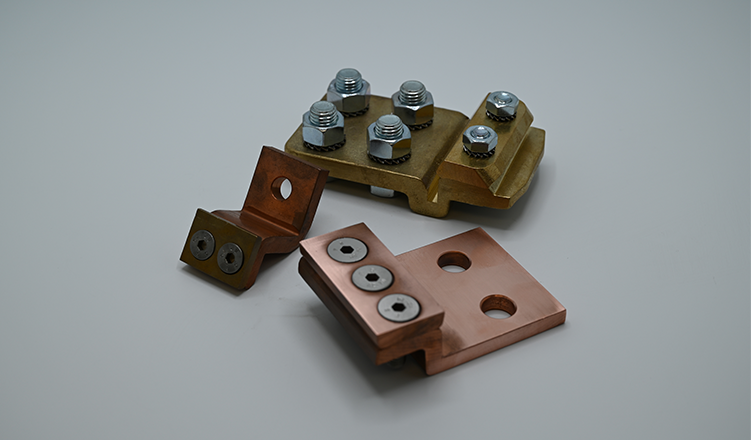

In addition to the standard versions, customized solutions are also possible. In cooperation with Vijselaar’s manufacturing facility, components such as connectors, expansion pieces, feed clamps, and line interruptions can be produced according to specific requirements. This is also feasible for smaller quantities, using a variety of materials. As a result, the system fits seamlessly with the technical demands of the project.
Available Through the Trusted Logistics Chain
The conductor rail components are now available and ready for implementation. Thanks to our streamlined logistics process and short communication lines, projects can rely on fast delivery and clear coordination—just as you are used to from us. Whether for new construction, renovation, or temporary installations, we ensure that the right components are available at the right time. We are happy to advise you on the most suitable application.
With this expansion of our portfolio, we offer a solid, scalable, and flexible conductor rail solution for rail infrastructure—fully ready for real world use. As the exclusive supplier of these systems, we guarantee direct access to technical support and factory level customization. Want to know more about the conductor rail components? Feel free to contact Sander Brinkhuis, Manager Marketing & Innovations.
