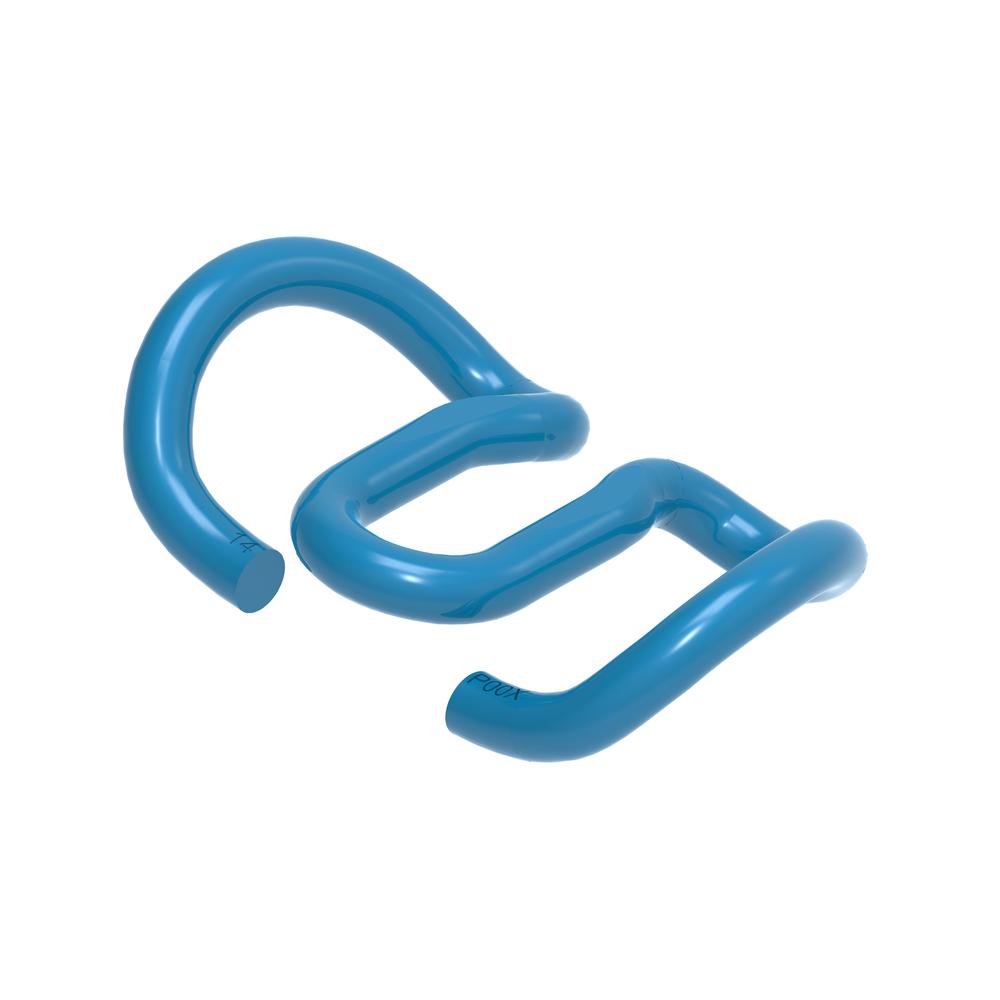

Rail Clip SKL14

The SKL14 rail clamp is designed to hold the rail in the correct position and to guarantee the elastic function of the rail fastening systems in which this rail clamp is used. While the ends of the spring arms rest on the rail foot and exert the clamping force, the middle loop of the clamp is located at a certain distance from the rail foot and is only activated in the event of excessive rail tilting.

The typical area of application for SKL14 clamps is conventional railways and urban metro systems on ballasted track.

Material: The SKL14 rail clamp is made of hot-rolled spring steel, quality 38Si7 (DIN 1.5023).

Corrosion protection: Basic black water-based paint, KTL or zinc flake coating
