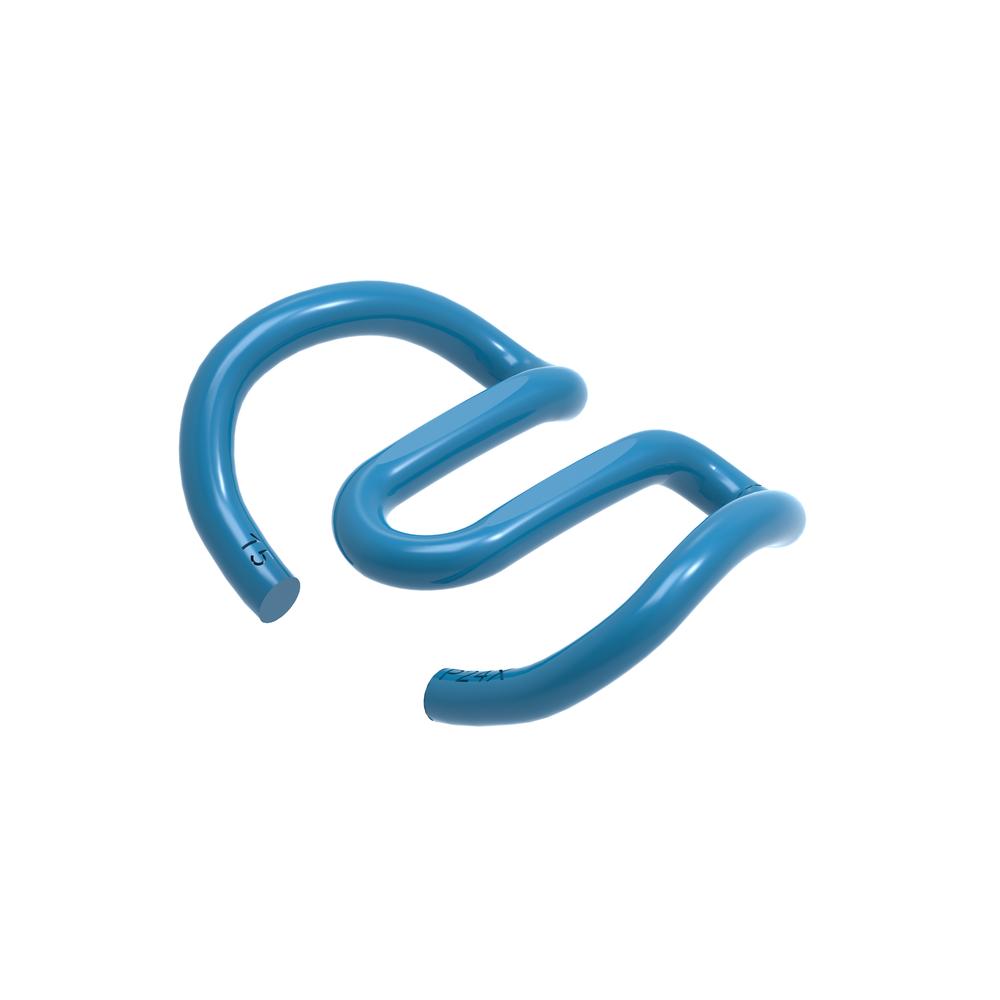

Rail Clip SKL15

The SKL15 rail clamp is designed to hold the rail in the correct position and to ensure the elastic function of the rail fastening systems in which this rail clamp is used. While the ends of the spring arms rest on the rail foot and exert the clamping force, the middle loop of the clamp is located at some distance from the rail foot and is only activated in the event of excessive rail tilting. The typical area of application for SKL15 clamps is high-speed systems on slab tracks.

Material: The SKL15 rail clamp is made of hot-rolled spring steel, quality 38Si7 (DIN 1.5023).
